Basic Concepts
A graph G = (N, E) consists of a set of nodes N (aka vertices) and edges E (aka links) which connect two nodes to each other. For our purposes, we will assume that N and E are finite and that the edges are undirected, and so can be defined uniquely as a pair of nodes (n1, n2) where n1 ≠ n2. We will also assume that all edges have a weight, which is a non-negative numeric value, and so if (n1, n2) is an edge in the graph under consideration, there is a function w(n1, n2) that defines the weight of this edge.

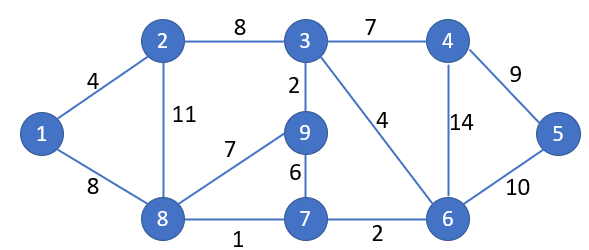

In what follows, we will label nodes by 1, 2, …, n where n is the number of nodes in N. We can describe a graph by a network diagram as shown in Figure 1.
Figure 1 – Network Diagram
Graph representation in Excel

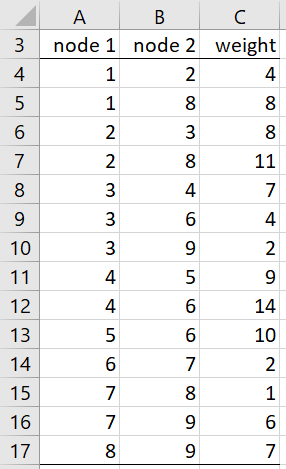

We will represent this same graph in Excel as shown in Figure 2.
Figure 2 – Excel representation of a graph
Each row in range A4:C17 represents one of the 14 edges in the graph. Each row specifies the two nodes being connected as well as the weight of the edge.
Path
A path between nodes i and j consists of a series of nodes n1, n2, …, nk such that i = n1, j = nk and (n1,n2), (n2,n3), …, (nk-1,nk) are edges in the graph. A graph is connected if there is a path between any two nodes in the graph. A graph is fully-connected if every node is connected (via an edge) to every other node.
A cycle is a path between and node and itself. A tree is a graph with no cycles. A graph G′ = (N′, E′) is a subgraph of G = (N, E) if N′ is a subset of N and E′ is a subset of E. A subgraph G′ of G spans graph G if N′ = N.
Spanning Tree
A spanning tree G′ of graph G is a subgraph of G that is a tree that spans G. The total edge weight of a graph is the sum of the weights of all the edges in the graph. G′ is a minimum spanning tree (MST) of G if it is a spanning tree of G whose total edge weight is smallest, i.e. there is no other spanning tree with a smaller total edge weight.
Note that any connected graph has a minimum spanning tree. This minimum spanning tree does not necessarily have to be unique. An unconnected graph has a minimum spanning forest.
In the following, we describe two algorithms for creating a minimum spanning tree of a connected graph. We will also show how to construct a minimum spanning tree for the graph G = (N, E) where N = a set of r-tuples (i.e. points in r-space) and E consists of all the lines connecting any two of the r-tuples in N.
Topics
- Kruskal Algorithm for MST
- Prim Algorithm for MST
- MST for r-tuples
- Creating a network diagram using Excel charting capabilities
Examples Workbook
Click here to download the Excel workbook with the examples described on this webpage.
