In Multiple Correlation we explore correlations with three random variables. We now extend some of these results to more than three variables.
Correlation Coefficient and Coefficient of Determination
First, we summarize some of the results from Multiple Regression Analysis about the correlation coefficient and coefficient of determination for any number of variables. In particular, the coefficient of determination can be calculated by
The Real Statistics Resource Pack provides the array function RSquare(R1, R2) which computes R2. Here R1 is an n × k array containing the X sample data and R2 is an n × 1 array containing the Y sample data.
Thus, we can calculate the correlation coefficient by the formula =SQRT(RSquare(R1, R2)).
Alternatively, we can calculate both the correlation coefficient and coefficient of determination using either Excel’s Regression data analysis tool or the Real Statistics Linear Regression data analysis tool.
Another use of RSquare
As described in Multiple Regression Analysis, there is also a second form of the RSquare function in which RSquare(R1, j) = R2 where the X data contains all the columns in R1 except the jth column and the Y data consists of the jth column of R1.
Thus if R1 is an n × k array consisting of all the X data followed by a column of Y data, then R2 = RSquare(R1, k).
In particular, suppose that R1, R2, and R3 are the three columns of the n × 3 array R. We further assume that R1 and R2 contain the sample data for the independent variables x1 and x2 and R3 contains the sample data for the dependent variable y. It follows that the array formulas =MCORREL(R3, R1, R2) and =SQRT(RSquare(R, 3)) produce the same results.
Property of R2
It turns out that R2 = RSquare(R1, j) can also be calculated by first finding the inverse of the correlation matrix for R1 and then selecting the jth element on the diagonal. If this has the value c, then the desired value of R2 is 1 – 1/c.
Thus, R2 can also be calculated by the formula:
=1–1/INDEX(DIAG(MINVERSE(CORR(R1))), j)
Partial Correlation Coefficient
Definition 1: Suppose that we have random variables x1, …, xk and for each xj we have a sample of size n. Now suppose that Z consists of all the random variables x1,…, xk excluding xi and xj where i ≠ j. Then the partial correlation coefficient between variables xi and xj is the correlation coefficient between xi and xj controlling for all the other variables (i.e. keeping all the variables in Z constant).
This definition is consistent with Definition 3 of Multiple Correlation where there are only three variables (i.e. k = 3). It turns out that the partial correlation coefficient can be calculated as described in the following property.
Partial Correlation Property
Property 1: Suppose that x1, …, xk and Z are as in Definition 1, and let X be the n × k matrix X = [xij]. The partial correlation coefficient between variables xi and xj where i ≠ j controlling for all the other variables is given by the formula
where the inverse of the correlation matrix R of X is R-1 = [pij].
Example
Example 1: Calculate the partial correlation coefficient between Crime and Doctor controlling for Traffic Deaths and University based on the data in Figure 1 (which is a subset of the data for Example 1 of Multiple Correlation).
Figure 1 – US State Data
First, we calculate the correlation matrix and its inverse for the data in Figure 1 (see Figure 2).
Figure 2 – Inverse of Correlation Matrix
The correlation matrix in range H4:K7 can be calculated as described in Multiple Regression Least Squares. We can then calculate the inverse of the correlation matrix (range H11:K14) via the worksheet formula =MINVERSE(CORR(B4:E18)).
We can now calculate the partial correlation coefficient between Crime and Doctors, controlling for Traffic Deaths and University, using Property 1. In particular, we use the formula =–I11/SQRT(H11*I12), yielding a value of 0.0919913.
In general, the partial correlation coefficient between the ith and jth variables is given by the formula
=INDEX(-H11:K14/MMULT(M11:M14,TRANSPOSE(M11:M14)), i, j)
or alternatively, the following formula which is less resource-intensive to calculate:
=INDEX(-H11:K14/(M11:M14*TRANSPOSE(M11:M14)), i, j)
Here the range M11:M14 represents the square root of the elements on the diagonal of the inverse of the correlation matrix. This can be calculated using the array formula
=SQRT(INDEX(H11:K14,G11:G14,G11:G14))
Or alternatively the array formula =SQRT(DIAG(H11:K14).
Observation: As described above, we can calculate R2C,DTU using any of the following formulas to get the value .103292:
=RSquare(C4:E18,B4:B18)
=Rsquare(B4:E18,1)
=1-1/H11
Partial Correlation Matrix
Definition 2: Suppose that x1, …, xk and X are as described in Definition 1 and Property 1. Then the partial correlation matrix of X is the k × k matrix S = [sij] where for all i ≠ j
Example 2: Calculate the partial correlation matrix for the data in Figure 1.
The result is shown in Figure 3.

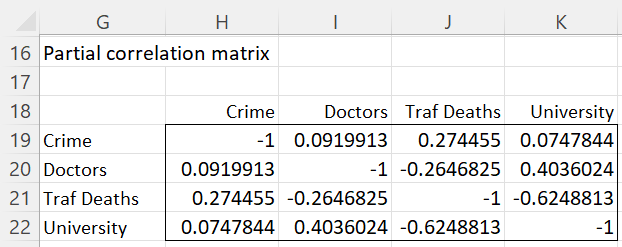

Figure 3 – Partial Correlation Matrix
The partial correlation matrix in range H19:K22 is calculated using the array formula
=-H11:K14/(M11:M14*TRANSPOSE(M11:M14))
Observation: Note that Definition 2 does not define the values on the diagonal of the partial correlation matrix (i.e. where i = j). The formula above results in a matrix whose main diagonal consists of minus ones. If we prefer to have the main diagonal consist of all ones, we can use the following modified formula:
=-H11:K14/(M11:M14*TRANSPOSE(M11:M14))+2*IDENTITY()
Worksheet Functions
Real Statistics Functions: The Real Statistics Resource Pack provides the following functions where R1 is an n × k matrix representing samples of size n for the random variables x1,…, xk.
PCORREL(R1, i, j) = the partial correlation coefficient of xi with xj based on the data in R1
PCORR(R1) is an array function that outputs the partial correlation matrix for the data in R1
For the data in Figure 1, PCORREL(B4:E18, 1, 2) = 0.0919913 of Figure 3. Furthermore, the values in H19:K22 could be calculated by the array formula =PCORR(B4:E18 except that the main diagonal would contain ones.
Examples Workbook
Click here to download the Excel workbook with the examples described on this webpage.
References
Wikipedia (2014) Partial correlation
https://en.wikipedia.org/wiki/Partial_correlation
Heckert, A. (2013) Partial correlation matrix. National Institute of Standards and Technology, Datapoint
https://www.itl.nist.gov/div898/software/dataplot/refman2/auxillar/matrpaco.htm#:~:text=Description%3A,j%20of%20the%20original%20matrix.
